DODGE RAM 2009-12 REAR CAMERA INTERFACE FOR MYGIG RADIO
REAR CAMERA INTERFACE for DODGE RAM with the Factory MYGIG Screen.

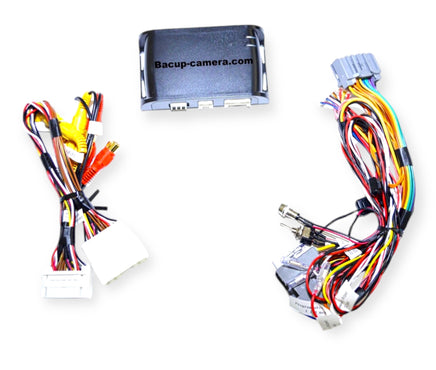

The MYGIG UNLOCKER is a plug-and-play kit that allows you to easily add a back- up camera to select 2009-2012 Dodge Ram with CAN-Bus while retaining factory settings. Ditch the wires and discover the simplicity of true plug-and-play. Simply disconnect the factory connector and connect our T-Harness inline. Use the bank of dip-switches to give you customers exactly what you need, turn on and off features for a truly customized installation
- Adds reverse camera input
- Unlocks navigation entry while vehicle is in motion
- A/V input capabilities
- 1 Audio / Video input
- 1 Audio / Video output
- Provides VES activation
- Works with 2009-2012 Dodge Ram
REQUIREMENTS: MUST have the MYGIG System
Example of a MYGIG radio.
If you are adding a front camera and two blind spot cameras, or any combination of the three, to the factory radio, a VS41 (sold separately) can be used in conjunction with the BCI. Follow the example below to make all inputs work accordingly through the one camera input on the factory radio. Connect the 10-pin harness from the VS41 harness into the Expansion Port on the BCI-CH21. Do not manually wire the trigger wires, or power and ground leads, when using the Expansion Port connector. When the appropriate CAN-Bus signals are detected (ie. reverse, or turn signal) the corresponding camera input will be automatically selected, and it’s video feed will be routed to the factory radio display.
