Ford Emblem Camera & 4.3" Mirror

Backup Camera Company

$199.99 $349.99

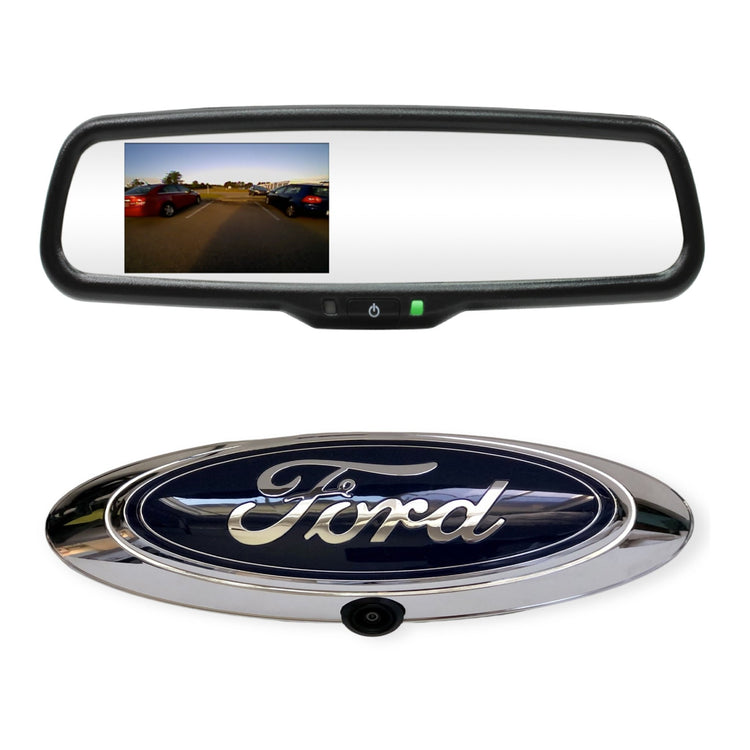

Ford F150, F250, F350 backup camera & 4.3" Mirror

SKU: FECC-43

Ford F150, F250, F350 backup camera - OE fit, includes 4.3" LCD & emblem camera

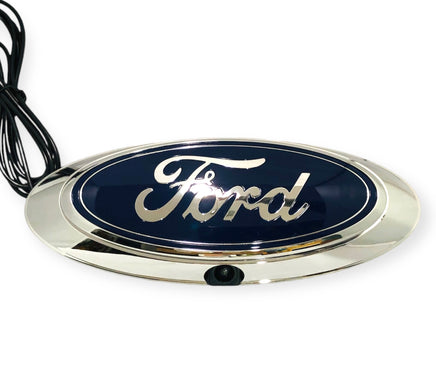

OEM factory emblem camera for Ford F-Series truck

F150, F250, F350 backup camera with Night Vision Technology and Parking Guidance Lines

OEM Ford Bezel, replaces factory tailgate emblem

This will fit any Ford with the large blue oval in the center of the tailgate (2005 and up).

Kit includes:

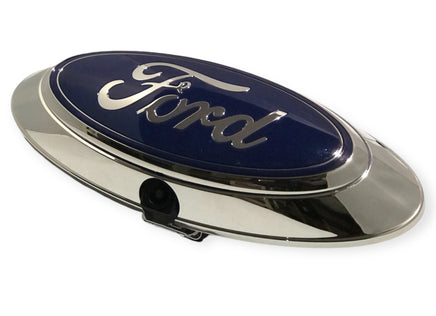

Factory OEM Tailgate Emblem & Camera Mount

CCD night vision camera pre-mounted

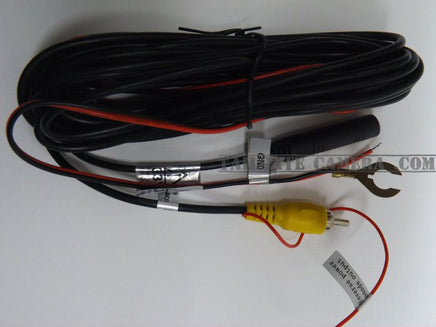

22 Foot Male to Male RCA Video Cable with reverse power output trigger wire

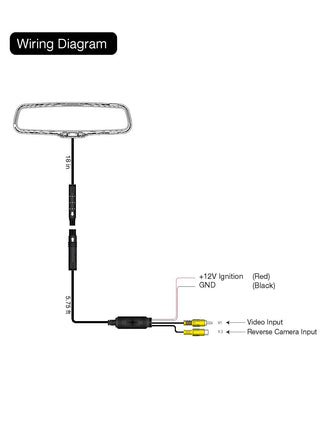

OEM Grade 4.3-inch Rearview Mirror Monitor with 2-Way Video-In,  with 1 Video auto-trigger switching for back-up camera

VSM-A mount is attached to mirror

Mirror measures 10-1/4 inch

Factory Ford tailgate nameplate/camera mount

Factory Ford blue oval emblem

Camera with night vision technology and selectable distance lines

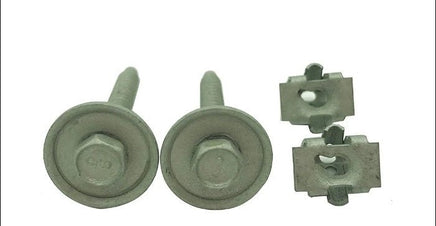

OEM Ford mounting bolts

Detailed installation instructions

Camera Specifications:

Factory Style Custom Ford Camera (CMOS III)

Super CMOS Sensor with Night Vision Technology

22 Foot Male to Male RCA Video Cable with reverse power output trigger wire

Mirror Image

Selectable Parking Guidance Line

Engineered ABS Housing

Resolution (TV LINES): 580

Minimum illumination: <0.1Lux

Angle: 170°

Working Voltage: 9-16V

Operating Temp: -22-+176°F

Water-proof: IP67-IP68

Video System: NTSC (Color)



This kit allows you to see what is directly behind the truck - it will even see the rear bumper and hitch.

 Installation Information:

Your factory tailgate blue oval is held on with two sided tape, use a heat gun and fishing line to work the old emblem off the surface of the tailgate. On older models you will need to drill an access hole for the camera to pass through the surface of the tailgate. On the bottom of the tailgate there is a square water drain that can be used to pass camera harness through. Most 2006 and newer models may already have the required holes so no drilling would be required in this case.

The wire harness has a single point weather resistant connection that connects to the camera near the spare tire under the truck - allows for easy tailgate removal! The camera harness is 22' long so all connections can be made inside the cab.
