Ford Emblem Camera & 7.3” Mirror

Ford Emblem Logo Backup Camera & Universal High Brightness Full View Rearview Mirror with 7.3” Wide Screen Monitor with multiple video inputs

For 2004-2014 Ford F150/250/350/450, 2009-2012 Flex

The Ford Emblem rear-view camera is specifically designed for select Ford trucks. With the Ford Emblem rear-view camera, you'll be able to view what's behind you on the included 7" mirror/monitor when you put your vehicle in reverse.

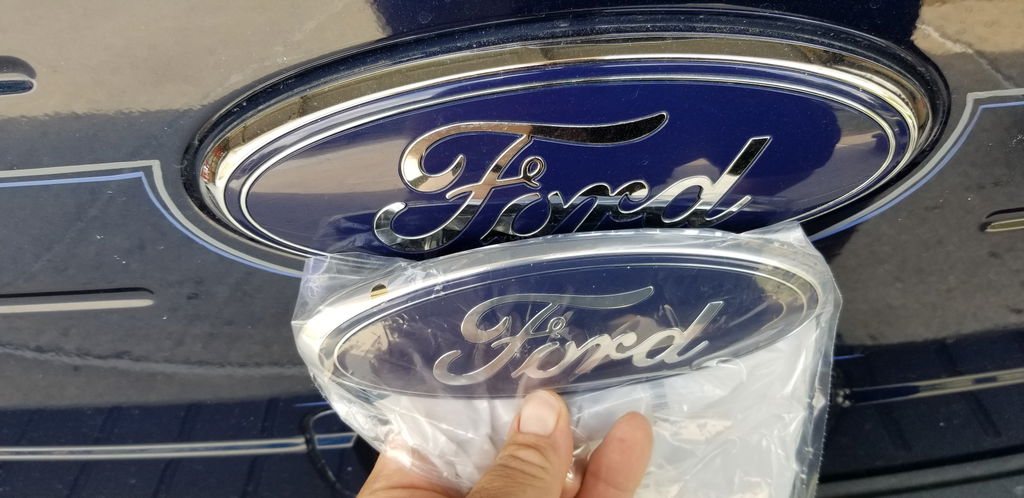

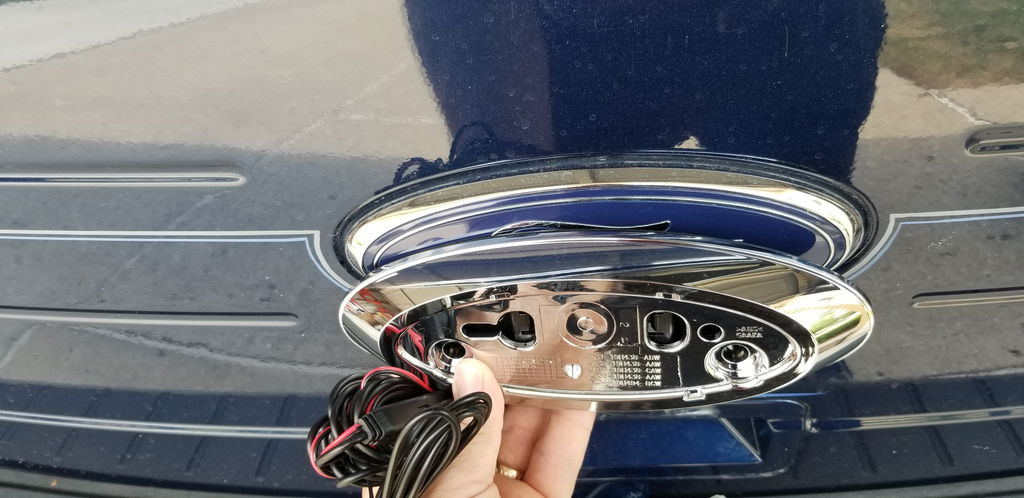

Replacement Tailgate Emblem: The Ford Emblem rear-view camera is integrated into a custom-designed mounting bracket. A new Ford "blue oval" logo emblem replaces the factory Ford badge on your truck's tailgate. You will need to remove the factory Ford badge and then install the emblem camera/emblem assembly in place of it. The new emblem snaps firmly into the camera's mounting bracket after installation.

Power & Signal Connections: The emblem camera includes a 24' video cable which will need to be routed through a hole in the bed behind the tailgate and up to the dash, where it connects to the 7.3" mirror/monitor. A 30" power/ground cable is supplied on the camera end to tap into power and ground at the reverse light.

Guide Line Delete: Parking guide lines are provided on the video signal to aid you in backing up the vehicle. If you do not want this feature, two unconnected Green wires on the video cable should be connected together and insulated to delete the guide lines.

Camera Specifications:

• MINy Camera with Ultra HD CMOS Sensor & NightVision Technology
• Engineered ABS Housing
• Resolution (TV LINES): 580
• Minimum illumination: <0.1Lux
• Angle: 170°
• Working Voltage: 9-16V
• Operating Temp: -22-+176°F
• Water-proof: IP67-IP68
• Video System: NTSC (Color)
• Image: Mirror / Standard Selectable
• Selectable Parking Guidance Line

What's in the box?

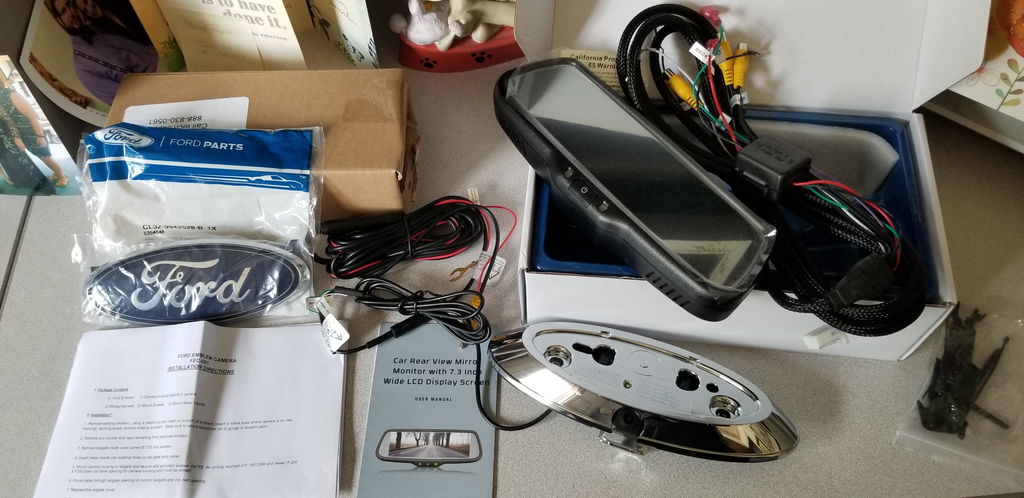

7.3 LCD Mirror  Base with built-in camera Oval Ford Emblem

Power / ground with composite video cable

(2) Screws & (2) inserts

Item Manual
