SALE
Ford F-Series truck F150, F250, F350 HD backup camera
OEM Ford Bezel, replaces factory tailgate emblem
SKU:FEC-HD
OE style factory emblem camera for Ford F-Series truck Can be used as a front view camera
F150, F250, F350 backup camera with Night Vision Technology - OEM Ford Bezel, replaces factory tailgate emblem
This will fit any Ford with the large blue oval in the center of the tailgate (2005 and up).
Kit includes:
Factory Ford tailgate nameplate/camera mount
Factory Ford blue oval emblem
Camera with night vision technology and selectable distance lines

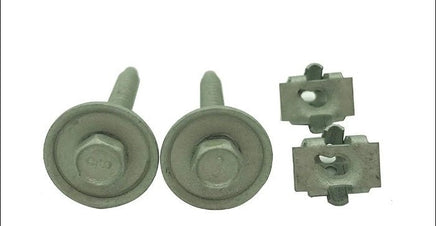

OEM Ford mounting bolts
Detailed installation instructions
Camera Specifications:
Factory Style Custom Ford Camera Ultra HD CMOS Sensor with NightVision Technology
24 Foot Male to Male RCA Video Cable with reverse power output trigger wire
Mirror Image
Selectable Parking Guidance Line
Engineered ABS Housing
Resolution (TV LINES): 600
Minimum illumination: <0.1 Lux
Angle: 150°
Working Voltage: 9-16V
Operating Temp: -22-+176°F
Water-proof: IP67-IP68
Video System: NTSC (Color)
This kit allows you to see what is directly behind the truck - it will even see the rear bumper and hitch. No monitor or mirror is included in this kit.
Installation Information:
This camera can be connected to your factory Ford navigation or any aftermarket monitor with an RCA input. A Backup Camera Interface kit is required if connecting to your factory navigation!
Your factory tailgate blue oval is held on with two sided tape, use a heat gun and fishing line to work the old emblem off the surface of the tailgate. On older models you will need to drill an access hole for the camera to pass through the surface of the tailgate. On the bottom of the tailgate there is a square water drain that can be used to pass camera harness through. Most 2006 and newer models may already have the required holes so no drilling would be required in this case.
The wire harness has a single point weather resistant connection that connects to the camera near the spare tire under the truck - allows for easy tailgate removal! The harness is 24' long so all connections can be made inside the cab.
