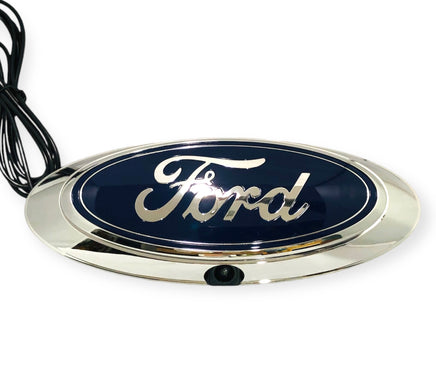

Ford F-Series truck Emblem Camera

$127.99 $179.99
SKU: FEC-001

OEM Ford Bezel, replaces factory tailgate emblem SKU:FEC-001

OE style factory emblem camera for Ford F-Series truck  Can be used as a front view camera

F150, F250, F350 backup camera with Night Vision Technology - OEM Ford Bezel, replaces factory tailgate emblem

This will fit any Ford with the large blue oval in the center of the tailgate (2005 and up).

Kit includes:

Factory Ford tailgate nameplate/camera mount

Factory Ford blue oval emblem

Camera with night vision technology and selectable distance lines

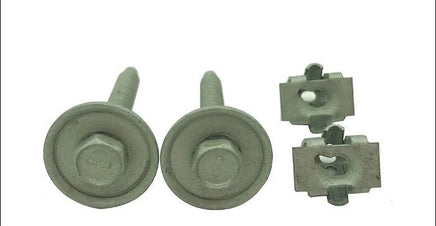

OEM Ford mounting bolts

Detailed installation instructions



Camera Specifications:

Factory Style Custom Ford Camera (CMOS III)

Super CMOS Sensor with NightVision Technology

24 Foot Male to Male RCA Video Cable

Mirror Image

Selectable Parking Guidance Line

Engineered ABS Housing

Resolution (TV LINES): 580

Minimum illumination: <0.2Lux

Angle: 150°

Working Voltage: 9-16V

Operating Temp: -22-+176°F

Water-proof: IP67-IP68

Video System: NTSC (Color)

This kit allows you to see what is directly behind the truck - it will even see the rear bumper and hitch. No monitor or mirror is included in this kit.

Installation Information:

This camera can be connected to your factory Ford navigation or any aftermarket monitor with an RCA input. Backup Camera Interface kit is required if connecting to your factory navigation!

Your factory tailgate blue oval is held on with two sided tape, use a heat gun and  fishing line to work the old emblem off the surface of the tailgate. On older models you will need to drill an access hole for the camera to pass through the surface of the tailgate. On the bottom of the tailgate there is a square water drain that can be used to pass camera harness through. Most 2006 and newer models may already have the required holes so no drilling would be required in this case.

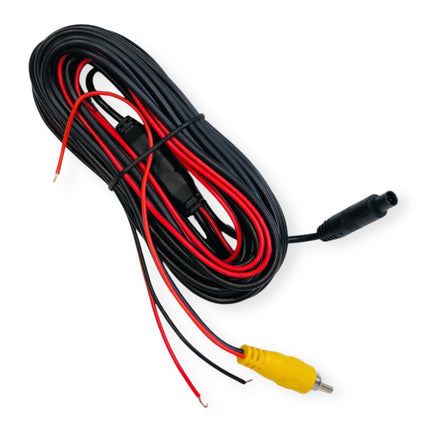

The wire harness has a single point weather resistant connection that connects to the camera near the spare tire under the truck - allows for easy tailgate removal! The harness is 24' long so all connections can be made inside the cab.

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Benjamin Staley
Ford emblem camera

Love it! Looks factory and the install was easy. Shipping was fast as well!

F
Florante Andrade

It’s easy to install straight forward instructions

B
Brian Mabe

Ford F-Series truck Emblem Camera

J
Jim Nations
Looks like it came from the Factory.

This for a 1999 F-350 Crew Cab with 8ft bed with a 2008 Super Duty tailgate with step. I had to make a template, because the camera hole nor the screw holes were present yet in the tailgate for this model. Installation after that was easy. Connected it to a Kenwood double din unit and connected power wire @ drivers side backup lamp and grounded. It works & looks like OEM.
I installed the decal over the Ford emblem.

K
Keith
Looks OEM. Works OEM.

This was for a 2012 Ford F-250, Crew Cab, short box. The install was very straight forward, but I’m a tradesman. I followed the outside of the frame, on the passenger side. There is a factory grommet in the floor, behind the front passenger seat that I used. Then I ran through the cable tray, which is inside the door sill. The cables reached, but just barely. Would have been too short if I had the 8 ft box on my Crew Cab truck. I connected to an after market Sony double din head unit. Worked first try. I connected the red and black power wires to the passenger side backup light. Only needed the yellow component plug, into the head unit.
