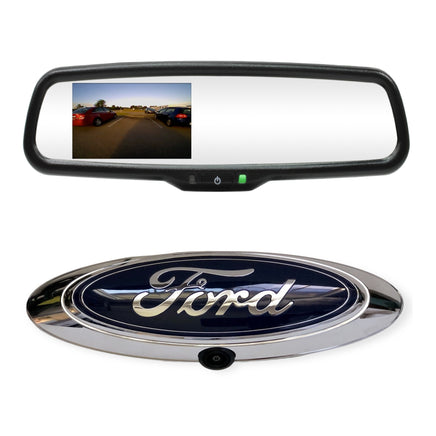

Ford Emblem HD Camera & 4.3" HD Mirror

$239.99 $299.99
SKU: FECC-43 HD

Ford F150, F250, F350 backup camera & 4.3" Mirror

SKU: FECC-43HD

Ford F150, F250, F350 backup camera - OE fit, includes 4.3" LCD & emblem camera

OEM factory emblem camera for Ford F-Series truck

F150, F250, F350 backup camera with Night Vision Technology and Parking Guidance Lines

OEM Ford Bezel, replaces factory tailgate emblem

This will fit any Ford with the large blue oval in the center of the tailgate (2005 and up).

Kit includes:

Factory OEM Tailgate Emblem & Camera Mount

CCD night vision camera pre-mounted

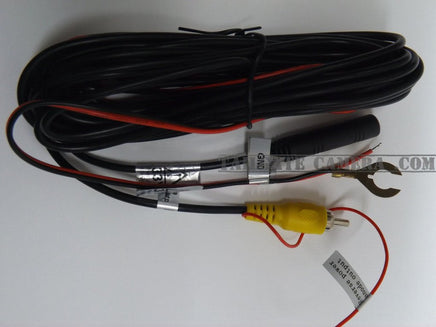

22 Foot Male to Male RCA Video Cable with reverse power output trigger wire

OEM Grade 4.3-inch Rearview Mirror Monitor with 2-Way Video-In,  with 1 Video auto-trigger switching for back-up camera

Mirror wire harness cover

Black wire cover for windshield

VSM-A mount is attached to mirror

Mirror measures 10-1/4 inch

Factory Ford tailgate nameplate/camera mount

Factory Ford blue oval emblem

Camera with night vision technology and selectable distance lines

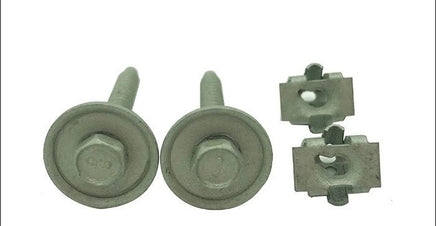

OEM Ford mounting bolts

Detailed installation instructions

Camera Specifications:

Factory Style Custom Ford Camera (CMOS III)

Super CMOS Sensor with Night Vision Technology

22 Foot Male to Male RCA Video Cable with reverse power output trigger wire

Mirror Image

Selectable Parking Guidance Line

Engineered ABS Housing

Resolution (TV LINES): 600

Minimum illumination: <0.1Lux

Angle: 170°

Working Voltage: 9-16V

Operating Temp: -22-+176°F

Water-proof: IP67-IP68

Video System: NTSC (Color)



This kit allows you to see what is directly behind the truck - it will even see the rear bumper and hitch.

 Installation Information:

Your factory tailgate blue oval is held on with two sided tape, use a heat gun and  fishing line to work the old emblem off the surface of the tailgate. On older models you will need to drill an access hole for the camera to pass through the surface of the tailgate. On the bottom of the tailgate there is a square water drain that can be used to pass camera harness through. Most 2006 and newer models may already have the required holes so no drilling would be required in this case.

The wire harness has a single point weather resistant connection that connects to the camera near the spare tire under the truck - allows for easy tailgate removal! The camera harness is 22' long so all connections can be made inside the cab.

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Skip Hall (Henrico, US)
Great product; bad instructions

Hardware installation was pretty straightforward… but I’m reasonably “handy,” and have worked on my cars for 50 years or so. But the instructions for connecting to the vehicle’s electrical system were unnecessarily confusing. After struggling to figure it out, I finally broke down and called tech support. We talked for 5 minutes, he explained what I needed to do in about 3, and I had it working 15 minutes from the time I called. Honestly… what he told me could’ve been written into the instructions in a short paragraph or less: to wit: “Connect camera video cable to matching mirror cable connector. Connect red wire from camera to the wire going to the backup light. (Solder and heat-shrink! Don’t use the crappy snappy clamp-on things!) Connect the black wire from the camera to a good ground. From the mirror, ground the black wire, and twist the others together (red, green, and blue, I think).” TaDa! But if you get stuck, don’t waste time struggling with it; (American!) tech support answers the phone promptly and will get you going in minutes. (Thanks again for your help, by the way.)👍

J
JOHN KRUGER (Salt Lake City, US)
works great so far

I have only had it installed for a week, but it works perfect and looks factory. I installed mine on a 2014 F350 crew cab long bed(very long truck) and the wires just barley reach, but they made it. Camera image is good in the day or night. So far I am very happy with it.

j
jeffrey l sheffield
Great camera

Ordered this for a Christmas present came in earlier than I was told. And they loved it thanks will have to order one for my truck now

T
TODD MEYER
2016 Ford Super duty Tail gate camera install

I purchased the tailgate emblem / rearview mirror kit. It took me a while to install cause I spent time soldering and heat shrink wires due to the salt used in Minnesota. The finished product is awesome if you don't have one buy it from Tailgate camera.
