SALE

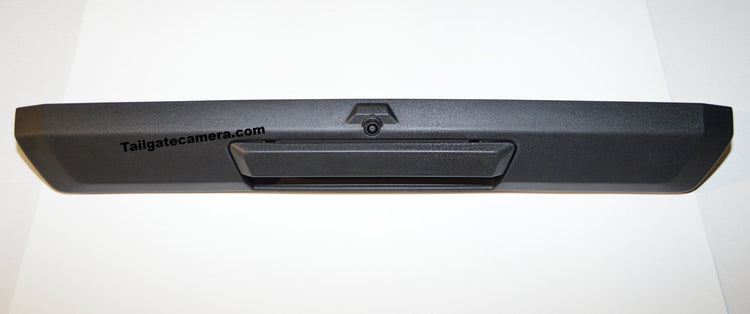

FORD Tailgate Handle With our Best HD Backup Camera installed
For 2017-18 Ford F250/350/450 Super Duty Trucks
The Tailgate Handle backup camera is specifically designed for select Ford trucks. Your Factory or aftermarket receiver must feature an integrated video monitor and a composite video camera input. With the Ford Tailgate Handle rear-view camera, you'll be able to view what's behind you on your in-dash receiver's video monitor when you put your vehicle in reverse.
Ford Tailgate Handle Camera: The tailgate handle rear-view camera will replace the original tailgate handle. You will need to remove the factory Ford tailgate handle and then install the new tailgate handle assembly in place of it.
Power & Signal Connections: The tailgate handle camera includes a 22' composite video cable which will need to be routed through a hole in the bed behind the tailgate and up to the dash, where it connects to the aftermarket head unit or factory LCD if you have purchased a video input module sold separately
Parking Guide Line on/off Selectable: Parking guide lines are provided on the video signal to aid you in backing up the vehicle. If you do not want this feature, two unconnected white wires on the video cable should be connected together and insulated to delete the guide lines.
Specifications:
- Waterproof camera with 22' video extension cable
- NTSC wide-angle rear view camera compatible with select Ford trucks
- Resolution: 600 TV lines
Effective pixels: 648 (H) x 488 (V)
- 180° wide viewing angle
- CCD technology provides a sharper picture day and night
- Warranty: 1 year
Sensor: CCD
Video Output: Color video out: 1.0Vp-p 75 (ohm) load
- Minimum Illumination: 0.2 Lux
- Parking Guide Line: on/off (selectable)
Image: Mirror/Positive (selectable)
Water Proof: Yes (IP67)
· Voltage: 12V
29 1/4 inches long
sku:17F250-cam
