Ford F-Series truck Emblem Camera HD IR NIGHT VISION

Ford F-Series truck F150, F250, F350 HD backup camera

THIS IS THE ONLY CAMERA WITH TRUE IR NIGHT VISION !

OEM Ford Bezel, replaces factory tailgate emblem

SKU:FEC-HDIR

OE style factory emblem camera for Ford F-Series truck  Can be used as a front view camera

F150, F250, F350 backup camera with Night Vision Technology - OEM Ford Bezel, replaces factory tailgate emblem

This will fit any Ford with the large blue oval in the center of the tailgate (2005 and up).

Kit includes:

Factory Ford tailgate nameplate/camera mount

Factory Ford blue oval emblem

Camera with 2 infrared lights for true night vision and selectable distance lines

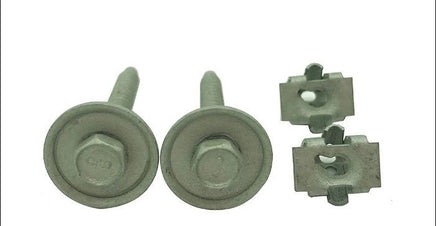

OEM Ford mounting bolts

Detailed installation instructions

Camera Specifications:

Factory Style Custom Ford Camera Ultra HD CMOS 3 Sensor with NightVision

28 Foot Male to Male RCA Video Cable with reverse power output trigger wire

Mirror Image

Selectable Parking Guidance Line

Engineered ABS Housing

Resolution (TV LINES): 580

Minimum illumination: <0 Lux

Angle: 170°

Working Voltage: 9-16V

Operating Temp: -22-+176°F

Water-proof: IP67-IP68

Video System: NTSC (Color)

This kit allows you to see what is directly behind the truck - it will even see the rear bumper and hitch. No monitor or mirror is included in this kit.

Installation Information:

This camera can be connected to your factory Ford navigation or any aftermarket monitor with an RCA input. Backup Camera Interface kit is required if connecting to your factory navigation!

Your factory tailgate blue oval is held on with two sided tape, use a heat gun and  fishing line to work the old emblem off the surface of the tailgate. On older models you will need to drill an access hole for the camera to pass through the surface of the tailgate. On the bottom of the tailgate there is a square water drain that can be used to pass camera harness through. Most 2006 and newer models may already have the required holes so no drilling would be required in this case.
